Amazfit GTR Mini vs Garmin Instinct E 40mm
Size, specs & wrist fit compared
As an Amazon Associate, WatchFitTool earns from qualifying purchases.
Which one fits you
On wrists narrower than about 45mm, the Garmin Instinct E 40mm is the safer pick — it stays proportionate down to roughly 42mm, where the Amazfit GTR Mini starts to hang over the edge. Above 45mm both sit cleanly, and the Amazfit GTR Mini gives you more presence.
The Amazfit GTR Mini wears larger than the Garmin Instinct E 40mm (42.8mm vs 40mm case), giving it more wrist presence — and needing a wider wrist to sit cleanly.
The Amazfit GTR Mini is the slimmer of the two (9.25mm vs 13.6mm), so it slides under a cuff more easily.
On the wrist the Amazfit GTR Mini feels lighter (36.2g vs 41g, case only).
Among the 321 43mm watches we hold thickness for, the Amazfit GTR Mini is thinner than 99%, so it wears flatter than its width suggests.
Among the 539 40mm watches we hold thickness for, the Garmin Instinct E 40mm is thicker than 98% — it will sit high even though the case width reads modest.
The Amazfit GTR Mini is 2.8mm wider, 2.8mm longer, 4.3mm thinner and 4.8g lighter than the Garmin Instinct E 40mm. Both are circular.
Amazfit
GTR Mini
Garmin
Instinct® E – 40 mm
Switch or add watches
Amazfit
GTR Mini
Garmin
Instinct® E – 40 mm
Watch Fit Tool
For sports watches, lug-to-lug (L2L) is what matters most — it decides whether a watch overhangs your wrist. Bulky is fine; overhang is not.
Measure at the point where you wear your watch — typically just below the wrist bone.
Flat width — lay your arm on a table, palm facing up, and measure straight across the top of your wrist with a ruler. Bone to bone; do not follow the curve down the sides.
Around — wrap a tape measure snugly round the wrist. No tape? Wrap a strip of paper, mark the overlap and hold the strip against a ruler.
Width ≠ circumference. They are different numbers — around 170mm is about 64mm across — so set the toggle to whichever one you actually measured before you type it in.
Amazfit GTR Mini
Case 42.8mm · Lug-to-lug 42.8mm · Thickness 9.3mm · 36g
Balanced Fit
42.8mm on a 55mm wrist
Comfortably inside the edges of your wrist, and it seats and sits low enough to wear without thinking about it.
On a 55mm wrist the sweet spot is 47–53mm lug to lug. This one is 42.8mm, so you could go bigger.
Measure where you wear it, just below the wrist bone. Either of these works — the tool converts between them.
- 1. Flat width — arm flat on a table, palm up. Measure straight across the top of the wrist, bone to bone, ignoring the curve down the sides.
- 2. Around — a tape, or a strip of paper marked and held against a ruler, snug the whole way round.
Leather: Attaches at the lugs, so the case back rests on your skin. Thins and softens with wear. Typical figures, not this model’s own.
Show the measurementsHide the measurements
- Across the wrist6.1mm spare each side
Comfortable, with visible skin either side.
- Off the wrist9.3mm off the skin
Sits low enough to disappear under a cuff. (9.3mm case, back against the skin)
- How it seats~4.3mm under the rim
Seats well, with the case back following most of the wrist.
- Weight on the wrist36g
Light enough to forget you have it on. (0.7g per mm of wrist)

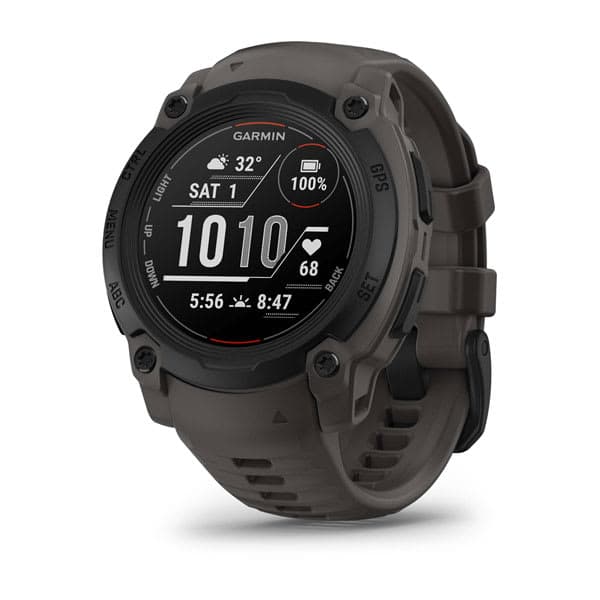

Garmin Instinct® E – 40 mm
Case 40.0mm · Lug-to-lug 40.0mm · Thickness 13.6mm · 41g
Balanced Fit
40mm on a 55mm wrist
Across the wrist it works — 7.5mm spare each side — but a tall watch on this wrist. Fine over a sleeve, awkward under one.
On a 55mm wrist the sweet spot is 47–53mm lug to lug. This one is 40mm, so you could go bigger.
Measure where you wear it, just below the wrist bone. Either of these works — the tool converts between them.
- 1. Flat width — arm flat on a table, palm up. Measure straight across the top of the wrist, bone to bone, ignoring the curve down the sides.
- 2. Around — a tape, or a strip of paper marked and held against a ruler, snug the whole way round.
Leather: Attaches at the lugs, so the case back rests on your skin. Thins and softens with wear. Typical figures, not this model’s own.
Show the measurementsHide the measurements
- Across the wrist7.5mm spare each side
Comfortable, with visible skin either side.
- Off the wrist13.6mm off the skin
A tall watch on this wrist. Fine over a sleeve, awkward under one. (13.6mm case, back against the skin)
- How it seats~3.4mm under the rim
Seats well, with the case back following most of the wrist.
- Weight on the wrist41g
Light enough to forget you have it on. (0.7g per mm of wrist)
2D Dimension Schematics
Every case drawn to scale on a shared centre — from above, and in profile against the wrist.
- Amazfit GTR Mini42.8mm · 9.3mm thick
- Garmin Instinct® E – 40 mm40mm · 13.6mm thick
3D preview
Amazfit GTR Mini vs Garmin Instinct® E – 40 mm on a wrist
Sized to your own wrist, turned any way you like.
Shapes are built from published measurements, not manufacturer 3D models — accurate proportions, generic dial.
Battery life compared
Furthest apart in GPS mode, where the Amazfit GTR Mini lasts 1.2× as long as the Garmin Instinct E 40mm (25 hours against 21 hours).
Amazfit GTR MiniGarmin Instinct E 40mm
Battery Saver
720 hours35 daysExpedition GPS Activity
—17 daysSmartwatch
14 days14 daysTraining
168 hours—Max Battery GPS
—43 hoursGPS
25 hours21 hoursAll Satellite Systems
—14 hours
Specifications
The short version
6 key specs| Spec | AmazfitGTR Mini | GarminInstinct® E – 40 mm |
|---|---|---|
| Case Width | 42.8mm | 40mm |
| Thickness | 9.25mm | 13.6mm |
| Weight | 36.2g | 41g |
| Shape | Circular | Circular |
| Display type | OLED/AMOLED | Monochrome, sunlight-visible, transflective memory-in-pixel (MIP) |
| Released | 2023 | 2025 |
Every specification
307 specs| Spec | Amazfit GTR Mini | Garmin Instinct® E – 40 mm |
|---|---|---|
| Design | ||
| width | 42.8 | — |
| height | 42.8 | — |
| volume | 16.94 cm³ | — |
| weight | 36.2 g | — |
| thickness | 9.25 | — |
| ATM rating | 5 ATM | — |
| resolution | 416 x 416 px | — |
| screen size | 1.28 inches | — |
| Display type | OLED/AMOLED | — |
| Has a display | Yes | — |
| pixel density | 326 ppi | — |
| width of band | 20 mm | — |
| water resistance | Water resistant | — |
| Always-On Display | Yes | — |
| has a touch screen | Yes | — |
| Watch band is replaceable | Yes | — |
| Has sapphire glass display | No | — |
| Ingress Protection (IP) rating | IP68 | — |
| has branded damage-resistant glass | No | — |
| Battery | ||
| charge time | 2 hours | — |
| battery life | 14 days | — |
| battery power | 280 mAh | — |
| has wireless charging | Yes | — |
| has a removable battery | No | — |
| battery life with GPS on | 25 hours | — |
| Has a solar power battery | No | — |
| has a rechargeable battery | Yes | — |
| battery life in training mode | 168 hours | — |
| battery life in power save mode | 720 hours | — |
| Sensors | ||
| has GPS | Yes | — |
| has a compass | Yes | — |
| Has a barometer | No | — |
| has a gyroscope | Yes | — |
| Has a cadence sensor | No | — |
| has an accelerometer | Yes | — |
| Monitors perspiration | No | — |
| Has a heart rate monitor | Yes | — |
| Has a temperature sensor | No | — |
| Monitors blood oxygenation levels | Yes | — |
| GPS | — | Yes |
| Compass | — | Yes |
| GLONASS | — | Yes |
| Galileo | — | Yes |
| Thermometer | — | Yes |
| Accelerometer | — | Yes |
| Barometric altimeter | — | Yes |
| Pulse Ox Blood Oxygen Saturation Monitor | — | Yes |
| Garmin Elevate™ wrist heart rate monitor | — | Yes |
| Features | ||
| release date | 2023-03-16 | — |
| Has a stopwatch | Yes | — |
| Has smart alarm | No | — |
| warranty period | 1 years | — |
| Has call control | Yes | — |
| Has silent alarm | Yes | — |
| measures VO2 max | Yes | — |
| Has notifications | Yes | — |
| Has ECG technology | No | — |
| Locates your phone | Yes | — |
| has fall detection | No | — |
| has voice commands | No | — |
| Has vibrating alerts | Yes | — |
| shows readiness level | Yes | — |
| Can be used to answer calls | No | — |
| measures resting heart rate | Yes | — |
| has irregular heart rate warnings | No | — |
| Has a built-in camera remote control function | Yes | — |
| Connectivity | ||
| has NFC | No | — |
| supports ANT+ | Yes | — |
| supports Wi-Fi | No | — |
| supports Galileo | Yes | — |
| Bluetooth version | 5.2 | — |
| has a cellular module | No | — |
| Is compatible with iOS | Yes | — |
| Is compatible with Android | Yes | — |
| Miscellaneous | ||
| Has passcode | Yes | — |
| Has auto pause | Yes | — |
| Is compatible with Windows | No | — |
| Is compatible with Mac OS X | No | — |
| Compatible with smart scales | Yes | — |
| has a battery level indicator | Yes | — |
| has a socket for a 3.5 mm audio jack | No | — |
| Compatible with external heart rate monitors | Yes | — |
| App & Software | ||
| Ad-free | Yes | — |
| Free app | Yes | — |
| Tracks BMI | Yes | — |
| Has coaching | Yes | — |
| Includes maps | Yes | — |
| Supports routes | Yes | — |
| Has achievements | Yes | — |
| Has goal setting | Yes | — |
| Has live tracking | Yes | — |
| Has exercise diary | Yes | — |
| Predicts ovulation | Yes | — |
| Can be personalised | Yes | — |
| Has weight tracking | Yes | — |
| Predicts start date | Yes | — |
| Tracks water intake | Yes | — |
| Has inactivity alerts | Yes | — |
| Has period notifications | Yes | — |
| Has temperature tracking | No | — |
| Provides activity reports | Yes | — |
| Displays fertile window notifications | Yes | — |
| Counts how many calories you've burned | Yes | — |
| Activity tracking | ||
| Measures pace | Yes | — |
| Tracks distance | Yes | — |
| Tracks elevation | No | — |
| Designed for golf | No | — |
| Tracks your sleep | Yes | — |
| Tracks steps taken | Yes | — |
| Designed for diving | No | — |
| Has a route tracker | Yes | — |
| Has exercise tagging | Yes | — |
| Has multi-sport mode | No | — |
| Tracks calorie intake | Yes | — |
| Provides sleep reports | Yes | — |
| Detects activities automatically | Yes | — |
| Has a stroke counter for swimming | No | — |
| Overview | ||
| Family | — | Garmin |
| General | ||
| Battery life | — | Smartwatch: Up to 14 days Battery Saver Watch Mode: Up to 35 days GPS: Up to 21 hours All Satellite Systems: 14 hours Max Battery GPS Mode: Up to 43 hours Expedition GPS Activity: Up to 17 days |
| Battery type | — | Lithium ion |
| Display Size | — | custom, two-window design; 0.86” x 0.86” (22 x 22 mm) |
| Case material | — | fiber-reinforced polymer |
| Lens Material | — | Chemically Strengthened Glass |
| Bezel Material | — | fiber-reinforced polymer |
| Memory/History | — | 128 MB |
| Strap material | — | silicone |
| Charging method | — | Garmin proprietary plug charger |
| Display resolution | — | 166 x 166 pixels (active area) |
| QuickFit® watch band compatible | — | yes (20 mm) |
| Product Info | ||
| Main SKU | — | 010-02932-00 |
| Product ID | — | 1314137 |
| Product Name | — | Instinct® E – 40 mm |
| Release Date | — | 1/6/2025 |
| Product Variation | — | Black with Charcoal Band |
| Clock Features | ||
| Timer | — | Yes |
| Stopwatch | — | Yes |
| Time/date | — | Yes |
| Alarm clock | — | Yes |
| GPS Time Sync | — | Yes |
| Sunrise/sunset times | — | Yes |
| Automatic daylight saving time | — | Yes |
| Cycling Features | ||
| Courses | — | Yes |
| Race an activity | — | Yes |
| Compatible with Varia™ lights | — | Yes |
| Speed and cadence sensor support (w/sensor) | — | Yes |
| Alerts (triggers alarm when you reach goals including time, distance, heart rate or calories) | — | Yes |
| Running Features | ||
| Run workouts | — | Yes |
| Race predictor | — | Yes |
| Foot pod capable | — | Yes |
| Running dynamics | — | Yes |
| Trail run auto climb | — | Yes |
| Run/Walk/Stand detection | — | Yes |
| Stride length (real time) | — | Yes |
| Vertical oscillation and ratio | — | Yes |
| Ground contact time and balance | — | yes (but not balance) |
| GPS-based distance, time and pace | — | Yes |
| Cadence (provides real-time number of steps per minute) | — | Yes |
| What You'll Love | ||
| Display type | — | Monochrome, sunlight-visible, transflective memory-in-pixel (MIP) |
| Water rating | — | 10 ATM |
| Pulse Ox blood oxygen | — | Yes |
| Sleep score and insights | — | Yes |
| Battery life (smartwatch mode) | — | Up to 14 days |
| Activity Profiles | ||
| Gym | — | Strength, HIIT, Cardio, Elliptical Training, Stair Stepping, Floor Climbing, Indoor Rowing |
| Swim | — | Pool Swimming, Open Water Swimming |
| Cycling | — | Biking, Road Biking, Mountain Biking, Gravel Biking, Bike Commuting, Bike Touring, eBiking, eMountain Biking, Indoor Biking, Cyclocross, BMX |
| Wellness | — | Walking, Pilates, Yoga |
| Team sports | — | Basketball, Volleyball, Field Hockey, Ice Hockey, Football/Soccer, American Football, Lacrosse, Rugby, Ultimate Disc, Cricket, Softball, Baseball |
| On the Water | — | Stand Up Paddleboarding, Rowing, Kayaking, Fishing, Boating, Whitewater |
| Racket sports | — | Tennis, Pickleball, Badminton, Squash, Table Tennis, Padel, Platform Tennis, Racquetball |
| Snow & winter | — | Skiing, Snowboarding, XC Classic Skiing, XC Skate Skiing, Ice Skating, Snowshoeing |
| Indoor running | — | Treadmill Running, Indoor Track Running, Virtual Running |
| Outdoor running | — | Running, Outdoor Track Running, Trail Running |
| Outdoor recreation | — | Hiking, Climbing, Hunting, Horseback Riding, Archery |
| Other activity profiles | — | Tactical |
| Swimming Features | ||
| Pool swim workouts | — | Yes |
| Time and distance alerts | — | Yes |
| Auto rest (pool swim only) | — | Yes |
| Drill logging (pool swim only) | — | Yes |
| Countdown start (pool swim only) | — | Yes |
| Underwater wrist-based heart rate | — | Yes |
| "Repeat on" rest timer (pool swim only) | — | Yes |
| Basic rest timer (up from 0) (pool swim only) | — | Yes |
| Stroke type detection (freestyle, backstroke, breaststroke, butterfly) (pool swim only) | — | Yes |
| Pool swim metrics (lengths, distance, pace, stroke count, swim efficiency (SWOLF), calories) | — | Yes |
| Open-water swim metrics (distance, pace, stroke count/rate, stroke distance, swim efficiency (SWOLF), calories) | — | Yes |
| Tactical Features | ||
| XERO™ Locations | — | Yes |
| Dual grid coordinates | — | Yes |
| Outdoor Recreation | ||
| Tides | — | Yes |
| TracBack® | — | Yes |
| Sight 'N Go | — | Yes |
| Tide glance | — | Yes |
| Back to start | — | Yes |
| UltraTrac mode | — | Yes |
| Vertical speed | — | Yes |
| GPS coordinates | — | Yes |
| Reference point | — | Yes |
| Area calculation | — | Yes |
| Elevation profile | — | Yes |
| Projected waypoint | — | Yes |
| Total ascent/descent | — | Yes |
| Future elevation plot | — | Yes |
| Distance to destination | — | Yes |
| Expedition GPS Activity | — | Yes |
| Sun and moon information | — | Yes |
| Point-to-point navigation | — | Yes |
| Bread crumb trail in real time | — | Yes |
| Barometric trend indicator with Storm Alert | — | Yes |
| Daily Smart Features | ||
| Calendar | — | Yes |
| Passcode | — | Yes |
| Connectivity | — | Bluetooth®, ANT+® |
| Garmin Share | — | Yes |
| Find My Phone | — | Yes |
| Find My Watch | — | Yes |
| VIRB® Remote | — | Yes |
| Morning report | — | Yes |
| Weather forecasts | — | Yes |
| Smart Notifications | — | Yes |
| Smartphone compatibility | — | iPhone®, Android™ |
| Controls smartphone music | — | Yes |
| On-device Connect IQ™ Store | — | Yes |
| Pairs with Garmin Connect™ Mobile | — | Yes |
| Battery saver (customizable low power watch) | — | Yes |
| Realtime settings sync with Garmin Connect™ mobile | — | Yes |
| Text response/reject phone call with text (Android™ only) | — | Yes |
| Connect IQ™ (downloadable watch faces, data fields and apps) | — | Yes |
| Activity Tracking Features | ||
| TrueUp™ | — | Yes |
| Move IQ™ | — | Yes |
| Step counter | — | Yes |
| Floors climbed | — | Yes |
| Calories burned | — | Yes |
| Distance traveled | — | Yes |
| Intensity minutes | — | Yes |
| Automatic rep counting | — | Yes |
| Garmin Connect™ Challenges app | — | yes (optional Connect IQ app) |
| Move alerts (displays on device after a period of inactivity) | — | Yes |
| Auto goal (learns your activity level and assigns a daily step goal) | — | Yes |
| Workout and Training Plans | ||
| HIIT workouts | — | Yes |
| Yoga workouts | — | Yes |
| Cardio workouts | — | Yes |
| Pilates workouts | — | Yes |
| Strength workouts | — | Yes |
| Garmin Running Coach Experts | — | Yes |
| Garmin Coach - Prebuilt Cycling Plans | — | Yes |
| Daily Suggested Workout - Cycling (Pace and Heart Rate Based) | — | Yes |
| Daily Suggested Workout - Running (Pace and Heart Rate Based) | — | Yes |
| Health & Wellness Monitoring | ||
| Sleep | — | yes (advanced) |
| Hydration | — | yes (in Garmin Connect™ and optional Connect IQ™ widget) |
| Breathwork | — | Yes |
| Fitness age | — | Yes |
| Nap detection | — | Yes |
| All-day stress | — | Yes |
| Women's health | — | yes (in Garmin Connect™ and optional Connect IQ™ widget) |
| Health snapshot | — | Yes |
| Respiration rate | — | Yes |
| Resting heart rate | — | Yes |
| Breathing variations | — | Yes |
| Relaxation reminders | — | Yes |
| Abnormal heart rate alerts | — | yes (high and low) |
| Relaxation breathing timer | — | Yes |
| Body Battery™ energy monitor | — | Yes |
| Wrist-based heart rate (constant, every second) | — | Yes |
| Safety and Tracking Features | ||
| Assistance | — | Yes |
| Live Event Sharing | — | Yes |
| Incident Detection during select activities | — | Yes |
| Incident detection alert on phone for wearables | — | Yes |
| Kid Activity Tracking Features | ||
| Toe-to-Toe™ Challenges app | — | yes (optional Connect IQ Toe-to-Toe™ Challenges app) |
| Training, Planning and Analysis Features | ||
| % HRR | — | Yes |
| % HR max | — | Yes |
| HR zones | — | Yes |
| HR alerts | — | Yes |
| Shortcuts | — | Yes |
| HRV status | — | Yes |
| Manual lap | — | Yes |
| Rest timer | — | Yes |
| Auto max HR | — | Yes |
| Auto scroll | — | Yes |
| Finish time | — | Yes |
| HR calories | — | Yes |
| Voice alerts | — | Yes |
| Custom alerts | — | Yes |
| Physio TrueUp | — | Yes |
| Recovery time | — | Yes |
| VO2 Max (Run) | — | Yes |
| Course guidance | — | Yes |
| Training effect | — | Yes |
| Virtual Partner | — | Yes |
| Workout benefit | — | Yes |
| Race an Activity | — | Yes |
| Advanced workouts | — | Yes |
| Interval training | — | Yes |
| VO2 Max (Trail Run) | — | Yes |
| GPS speed and distance | — | Yes |
| Configurable lap alerts | — | Yes |
| Customizable data pages | — | Yes |
| Touch and/or button lock | — | Yes |
| Activity history on watch | — | Yes |
| Downloadable training plans | — | Yes |
| Training effect (anaerobic) | — | Yes |
| HRM running pace and distance | — | Yes |
| Heat and altitude acclimation | — | Yes |
| Customizable activity profiles | — | Yes |
| Auto Pause® automatic timer halt | — | Yes |
| Respiration rate (during exercise) | — | Yoga and Breathwork only |
| Auto Lap® interval tracking feature | — | Yes |
| Primary benefit (Training Effect labels) | — | Yes |
| Power Modes - customizable in-activity battery settings | — | Yes |
| HR broadcast (broadcasts HR data over ANT+® to paired devices) | — | Yes |
Wrist Fit
Amazfit GTR Mini
Sits best on wrists ~45–61mm wide (≈ 12.0–16.3cm circumference).
Garmin Instinct E 40mm
Sits best on wrists ~42–57mm wide (≈ 11.2–15.2cm circumference).
Frequently Asked Questions
Is the Amazfit GTR Mini bigger than the Garmin Instinct E 40mm?
The Amazfit GTR Mini is bigger — 42.8mm vs 40mm case width.
Which fits a smaller wrist better, the Amazfit GTR Mini or the Garmin Instinct E 40mm?
The Amazfit GTR Mini suits wrists around 45–61mm wide, and the Garmin Instinct E 40mm around 42–57mm. The one with the smaller lower bound is the safer pick for a small wrist.
Can I see the Amazfit GTR Mini and Garmin Instinct E 40mm side by side at true scale?
Yes — the schematics and photos above show both watches at matched scale, and our fit tool overlays each on your wrist width.
