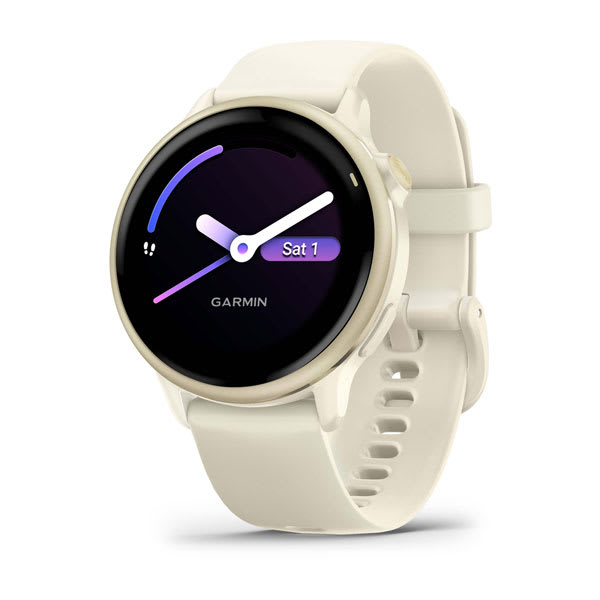

Garmin Vivoactive 6 — case dimensions and design

Garmin · 2025

Vivoactive 6Size, Dimensions & Wrist Fit

Case Width

42.2mm

Thickness

10.9mm

Battery

11 days

Weight

23g

The Garmin Vivoactive 6 sits best on flat wrist widths of about 44–60mm (≈ 11.7–16.0cm wrist circumference). Adjust the slider below to check your wrist.

Check Wrist FitCheck offerCompare

Affiliate disclosure: As an Amazon Associate, WatchFitTool earns from qualifying purchases. If you buy through links on this page, we may earn a commission at no extra cost to you. Learn more.

The vívoactive 6 in short

The figures that decide whether this watch suits you, pulled out of the full specification sheet further down.

  • Rated for 11 days of use per charge.
  • Water rated to Swim, 5 ATM.
  • 23g on the wrist. Lighter than 100% of the 42mm watches we have weights for.
  • 1.2" (30.4 mm) diameter AMOLED (optional always-on mode) display.
  • fiber-reinforced polymer case, Corning® Gorilla® Glass 3 glass.

Does the Vivoactive 6 fit your wrist?

Drag the slider to your wrist width and see the Vivoactive 6 overlaid at true scale. Lug-to-lug — not case diameter — decides whether a watch overhangs your wrist.

Fit tool

Watch Fit Tool

For sports watches, lug-to-lug (L2L) is what matters most — it decides whether a watch overhangs your wrist. Bulky is fine; overhang is not.

Your wrist
mm
≈ 146.9mm around

Garmin vívoactive 6

Case 42.2mm · Lug-to-lug 42.2mm · Thickness 10.9mm · 23g

Check offer

Balanced Fit

42.2mm on a 55mm wrist

10:09TUE 12lug to lug 42.2mmyour wrist 55.0mm

Comfortably inside the edges of your wrist, and it seats and sits low enough to wear without thinking about it.

On a 55mm wrist the sweet spot is 47–53mm lug to lug. This one is 42.2mm, so you could go bigger.

How to Measure

Measure where you wear it, just below the wrist bone. Either of these works — the tool converts between them.

  1. 1. Flat width — arm flat on a table, palm up. Measure straight across the top of the wrist, bone to bone, ignoring the curve down the sides.
  2. 2. Around — a tape, or a strip of paper marked and held against a ruler, snug the whole way round.
Complete Wrist Measurement Guide →
Against one you know

Leather: Attaches at the lugs, so the case back rests on your skin. Thins and softens with wear. Typical figures, not this model’s own.

Show the measurements
  • Across the wrist6.4mm spare each side

    Comfortable, with visible skin either side.

  • Off the wrist10.9mm off the skin

    Normal sports-watch height for a wrist this size. (10.9mm case, back against the skin)

  • How it seats~4.1mm under the rim

    Seats well, with the case back following most of the wrist.

  • Weight on the wrist23g

    Light enough to forget you have it on. (0.4g per mm of wrist)

Happy with the fit? Check current availability for the Vivoactive 6.

Check offer

2D Dimension Schematics

The vívoactive 6 drawn to scale — from above, and in profile against the wrist.

Highlight
From above — true scale
From the side — how far it sits off the wrist
  • Garmin vívoactive 642.2mm · 10.9mm thick

3D preview

Garmin vívoactive 6 on a wrist

On an arm sized to your own wrist — the view a product photo never gives you.

Open 3D try-on

Shapes are built from published measurements, not manufacturer 3D models — accurate proportions, generic dial.

vívoactive 6 battery life

The runtime the manufacturer publishes for everyday use.

  • Smartwatch11 days
Lithium ion

How the vívoactive 6 ranks on battery

Against the 296 Garmin watches in our database, ranked on each figure Garmin publishes.

  • Everyday use11 days#207 of 285
  • GPS tracking21 hours#171 of 267
  • Power save21 days#23 of 37
See all 296 Garmin watches ranked by battery life

vívoactive 6 specifications

The figures that decide a purchase, followed by every line Garmin publishes.

Battery life
Smartwatch mode: Up to 11 days (5 days display always-on) Battery Saver Smartwatch mode: Up to 21 days GPS-Only GNSS mode: Up to 21 hours All-Systems GNSS mode: Up to 17 hours All-Systems GNSS mode with music: Up to 8 hours See details
Display
1.2" (30.4 mm) diameter
Resolution
390 x 390 pixels
Water rating
Swim, 5 ATM
Case material
fiber-reinforced polymer
Bezel
anodized aluminum
Glass
Corning® Gorilla® Glass 3
Strap
silicone
Storage
8 GB
Charging
Garmin proprietary plug charger

Full specification sheet

199 published lines across 18 groups, unedited

Overview

Family
Garmin

General

Weight
23 g (36 g with included band)
Battery life
Smartwatch mode: Up to 11 days (5 days display always-on) Battery Saver Smartwatch mode: Up to 21 days GPS-Only GNSS mode: Up to 21 hours All-Systems GNSS mode: Up to 17 hours All-Systems GNSS mode with music: Up to 8 hours See details
Battery type
Lithium ion
Display Size
1.2" (30.4 mm) diameter
Case material
fiber-reinforced polymer
Color display
Lens material
Corning® Gorilla® Glass 3
Physical size
42.2 x 42.2 x 10.9 mm Fits wrists with a circumference of 125-190 mm
Bezel material
anodized aluminum
Memory/History
8 GB
Strap material
silicone
Charging method
Garmin proprietary plug charger
Large font option
Display resolution
390 x 390 pixels
Quick Release bands
yes (20 mm, Industry standard)

Sensors

Stocks
Calendar
Passcode
Calculator
Connectivity
Bluetooth®, ANT+®, Wi-Fi®
Garmin Share
Find My Phone
Evening report
Morning report
Red shift mode
Weather forecasts
Smart Notifications
Smartphone compatibility
iPhone®, Android™
Controls smartphone music
On-device Connect IQ™ Store
Plays and controls watch music
Find My Phone during GPS activity
Pairs with Garmin Connect™ Mobile
Compatible with Garmin Messenger app
Find My Garmin (helps locate lost device)
Battery saver (customizable low power watch)
Realtime settings sync with Garmin Connect™ mobile
View images from notifications on watch (Android™ only)
Text response/reject phone call with text (Android™ only)
Connect IQ™ (downloadable watch faces, data fields and apps)

Variant

Color
Lunar Gold with Bone Band
Available Colors
Slate with Black Band; Metallic Pink Dawn with Bone Band; Cream Gold with French Gray Band; Lunar Gold with Bone Band; Metallic Jasper Green with Jasper Green Band; Metallic Pink Dawn with Pink Dawn Band; Slate with Pebble Gray Band

Clock Features

Sleep
yes (advanced)
Hydration
Breathwork
Meditation
Fitness age
Sleep coach
Health status
Nap detection
All-day stress
Women's health
Health snapshot
Sleep alignment
Respiration rate
Lifestyle logging
Resting heart rate
Breathing variations
Relaxation reminders
Abnormal heart rate alerts
yes (high and low)
Relaxation breathing timer
Body Battery™ energy monitor
Heart rate (constant, every second)

Cycling Features

Time and distance alerts
Auto rest (pool swim only)
Underwater wrist-based heart rate
Basic rest timer (up from 0) (pool swim only)
Stroke type detection (freestyle, backstroke, breaststroke, butterfly) (pool swim only)
Pool swim metrics (lengths, distance, pace, stroke count, swim efficiency (SWOLF), calories)
Open-water swim metrics (distance, pace, stroke count/rate, stroke distance, swim efficiency (SWOLF), calories)

Golfing Features

Sun and moon information
yes (via Connect IQ™)

Running Features

PinPointer
Tournament legal
Digital scorecard
Garmin AutoShot™
Round timer/odometer
Yardage to layups/doglegs
Hazards and course targets
Pairs with Garmin Golf app
Green View with manual pin position
CT1 Automatic club tracking compatible (requires accessory)
CT10 Automatic club tracking compatible (requires accessory)
Yardage to F/M/B (distance to front, middle and back of green)
Stat tracking (strokes, putts per round, greens and fairways hit)
Measures shot distance (calculates exact yardage for shots from anywhere on course)
automatic

What You'll Love

Timer
Stopwatch
Time/date
Alarm clock
Touchscreen
Display type
AMOLED (optional always-on mode)
Water rating
Swim, 5 ATM
GPS Time Sync
Garmin Pay™
Music storage
Wheelchair mode
Smart wake alarm
Sunrise/sunset times
Pulse Ox blood oxygen
yes (spot-check, and optional all-day and in sleep)
Sleep score and insights
Automatic daylight saving time
Battery life (smartwatch mode)
Up to 11 days (5 days display always-on)

Activity Profiles

Assistance
Incident Detection during select activities
Incident detection alert on phone for wearables

Outdoor Recreation

Back to start

Daily Smart Features

HIIT workouts
Yoga workouts
Cardio workouts
Pilates workouts
Strength workouts
Garmin Running Coach
Garmin Coach - Strength
Garmin Running Coach Experts
On-screen workout animations
On-screen workout muscle maps
Workouts for wheelchair users
Garmin Coach - Prebuilt Cycling Plans
Daily suggested workout - Walking (duration based)

Mapping & Navigation

Compatible with Varia™ lights
Speed and cadence sensor support (w/sensor)
yes (using ANT+ or BLE)
Compatible with Varia™ radar (rear-facing radar)
Alerts (triggers alarm when you reach goals including time, distance, heart rate or calories)

Activity Tracking Features

% HR max
HR zones
HR alerts
HRV status
Manual lap
Auto scroll
HR calories
Voice alerts
Physio TrueUp
Recovery time
VO2 Max (Run)
Training effect
Workout benefit
Advanced workouts
Interval training
GPS speed and distance
Customizable data pages
Touch and/or button lock
Activity history on watch
Downloadable training plans
Training effect (anaerobic)
HRM running pace and distance
Customizable activity profiles
Auto Pause® automatic timer halt
Respiration rate (during exercise)
yoga, breathwork and meditation only
Auto Lap® interval tracking feature
HR broadcast (broadcasts HR data over ANT+® to paired devices)
yes (using ANT+ or BLE)
Improved interval (includes open repeats, intervals data page, rest screen and auto detection)

Workout and Training Plans

Gym
Strength, HIIT, Cardio, Elliptical Training, Stair Stepping, Indoor Rowing, Jump Roping
Swim
Pool Swimming, Open Water Swimming
Cycling
Biking, Road Biking, Gravel Biking, Bike Touring, eBiking, Handcycling, Indoor Handcycling Indoor Biking, Cyclocross
Wellness
Walking, Pilates, Yoga, Indoor Walking, Mobility
In the ring
Boxing, Mixed Martial Arts
Team sports
Basketball, Volleyball, Field Hockey, Ice Hockey, Football/Soccer, American Football, Lacrosse, Rugby, Ultimate Disc, Cricket, Softball, Baseball
Motor sports
Motorcycling, Overlanding, Motocrossing, ATVing, Snowmobiling
On the water
Stand Up Paddleboarding, Kayaking, Rowing, Snorkeling
Racket sports
Tennis, Pickleball, Badminton, Squash, Table Tennis, Padel, Platform Tennis, Racquetball
Indoor running
Treadmill Running, Indoor Track Running
Outdoor running
Running, Outdoor Track Running, Trail Running, Obstacle Running
Snow and winter
Skiing, Snowboarding, XC Classic Skiing, XC Skate Skiing, Ice Skating, Snowshoeing
Outdoor recreation
Hiking, Horseback Riding, Golfing, Mountaineering, Disc Golf, Archery
Other activity profiles
Inline Skating

Health & Wellness Monitoring

GPS
QZSS
BeiDou
Compass
GLONASS
Galileo
Gyroscope
Thermometer
yes (tempe™ sensor required)
Accelerometer
Ambient light sensor
Pulse Ox Blood Oxygen Saturation Monitor
Garmin Elevate™ wrist heart rate monitor

Safety and Tracking Features

TrueUp™
Move IQ™
Step counter
Calories burned
Distance traveled
Intensity minutes
Weight shift alert
Automatic rep counting
Wheelchair push tracker
Move Alert movement options
Garmin Connect™ Challenges app
Move alerts (displays on device after a period of inactivity)
Auto goal (learns your activity level and assigns a daily step goal)

Training, Planning and Analysis Features

Run workouts
Race predictor
Foot pod capable
Running dynamics
Run/Walk/Stand detection
PacePro™ Pacing Strategies
GPS-based distance, time and pace
Cadence (provides real-time number of steps per minute)

vívoactive 6 — Frequently Asked Questions

Will the Garmin Vivoactive 6 fit my wrist?

The Garmin Vivoactive 6 looks balanced on flat wrist widths of roughly 44–60mm (about 11.7–16.0cm circumference). Drag the slider above to check it against your own measurement.

How long does the Garmin Vivoactive 6 battery last?

Garmin rates it at 11 days per charge in everyday use.

How does the Garmin Vivoactive 6 battery compare with other Garmin watches?

At 11 days in everyday use it ranks #207 of the 285 Garmin watches in our database — below the middle of the range. The full ranking, including GPS and power-saving figures, is on our Garmin battery life comparison.

Is the Garmin Vivoactive 6 thick for a 42mm watch?

At 10.9mm, thinner than 84% of 42mm watches, so it slides under a cuff more easily than most of its size. Thickness, not case width, is what decides whether a watch catches on a shirt cuff.

What other watches are the same size as the Garmin Vivoactive 6?

Certina DS Action Chrono PVD / Carbon / Bracelet, Omega Speedmaster Professional Moonwatch 3861 Moonshine Gold / Black Lacquer, TAG Heuer Carrera Chronograph Seafarer Stainless Steel / Silver, Huawei Watch 5 - 42mm all sit within half a millimetre of the Garmin Vivoactive 6's 42.2mm case, so they cover the same amount of wrist.

← All Garmin watchesGarmin watches 40–44mm →Garmin battery life compared →Browse all brandsHow watch sizing works →Compare watch sizes →
